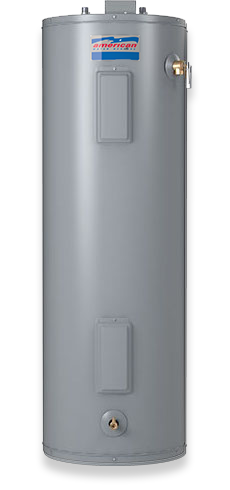

American Water Heaters
Light-Service Commercial Electric - Designed for light duty commercial applications with intermittent hot water loads.
FEATURESGLASSLINED TANK - Tank interior is coated with glass specially designed by American for water heater use.
HEATING ELEMENTS - Two 6.1 KW zinc plated copper sheathed elements are standard.
STANDARD VOLTAGES - The standard voltage is 277V single phase.
TOP MOUNTED RECESSED JUNCTION BOX
CONTROLS - Thermostat is adjustable through a range of 120º to 181ºF with a manual reset high temperature cutoff. The heater is wired for non-simultaneous single phase operation.
COREGARD™ ANODE ROD - Our anode rods have a stainless steel core that extends the life of the anode rod allowing superior tank protection for longer than standard anode rods.
ENHANCED-FLOW BRASS DRAIN VALVE - Solid brass, tamper resistant, enhanced-flow, ball type, drain valve.
FACTORY INSTALLED CSA CERTIFIED AND ASME RATED TEMPERATURE AND PRESSURE RELIEF VALVE
CERTIFIED TO UL 1453 FOR COMMERCIAL ELECTRIC WATER HEATERS
Meets the standby loss requirements of the U.S. Department of Energy and current edition of ASHRAE/IES 90.1.
6-YEAR LIMITED TANK / 1-YEAR LIMITED PARTS WARRANTY
