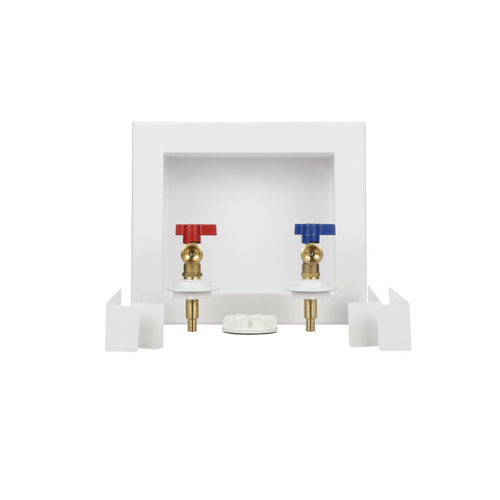

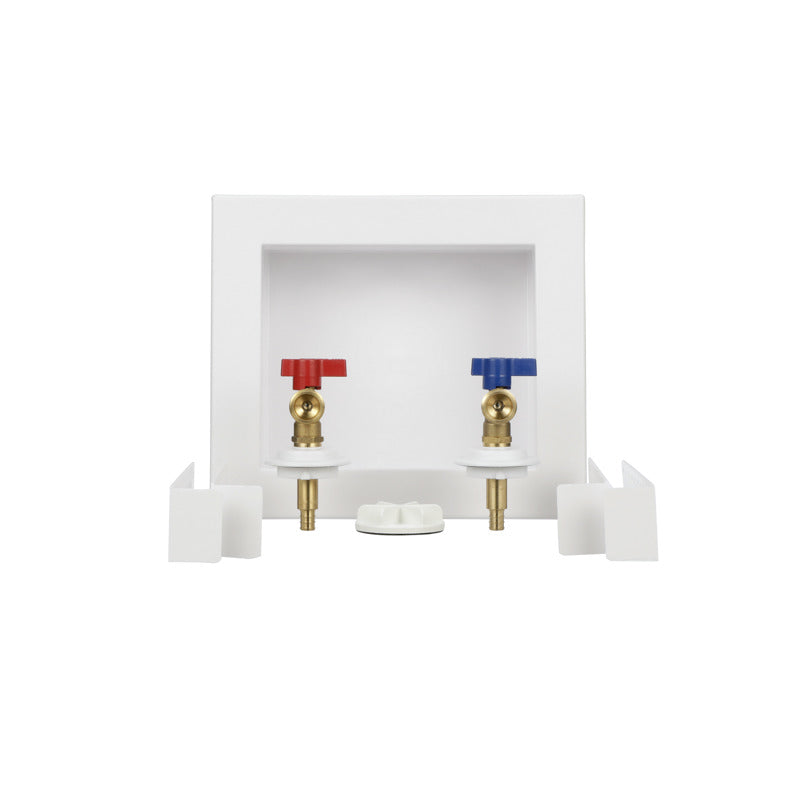

Oatey® Quadtro, 1/4 Turn, F1807 PEX Washing Machine Outlet Box – Standard Pack

The Oatey® Quadtro® Washing Machine Outlet Box is made for commercial or residential applications where supply valves and waste drains are recessed into the wall. The proprietary lock and load valves enable left, right or center positioning of the drain pipe. This easy-to-install box includes all necessary support brackets to mount the water supply valves from the top or bottom. Oatey products have earned the trust of plumbing professionals for over 100 years.

Connects to PEX supply line with F1807 connection
Quadtro® residential and commercial washing machine outlet box
2 in. drain opening fits PVC or ABS Sch. 40 DWV pipe
Easy-to-remove, tool-free 1/4-turn knockout
Snap-on faceplate frame accommodates up to 1 in. drywall
Box made of high impact polystyrene stands up to the roughest job site abuse
4 support brackets included for easy top or bottom valve mounting
Two proprietary lock and load 1/4-turn valves enable left, right or center positioning of the drain pipe
Four openings accommodate: A hot water PEX-compatible valve, a cold water PEX-compatible valve, PVC or ABS Sch. 40 drain pipe for connection to your DWV system, and the option for top-down supply line installation
Box Dimensions: 9.43 in. W x 9.61 in. H x 3.73 in. D; Box Opening Dimensions: 8-3/4 in. W x 7.26 in. H
Faceplate Dimensions: 11.73 in. W x 10.19 in. H
