Southwire Romex® Brand SIMpull® Copper Type NM-B Cable

Southwire

SKU: 10200913

Options

Nonmetallic-Sheathed Cable. 600 Volt. Copper Conductor. PVC Insulation/Nylon Sheath. PVC Jacket with SIMpull^® Technology for Easier Pulling.

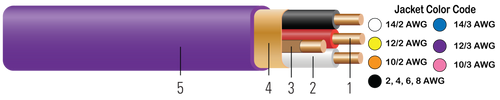

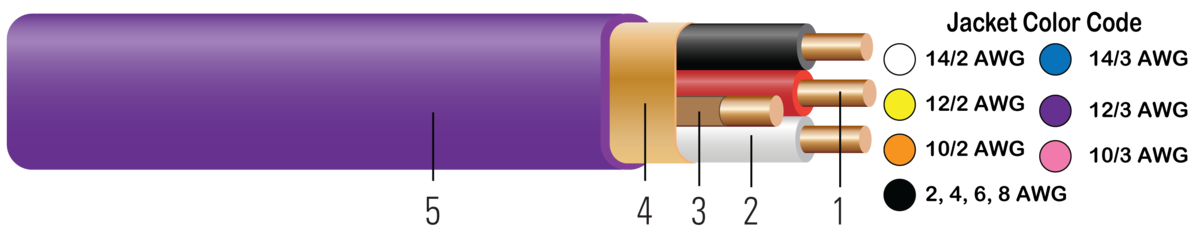

Construction

Conductor: Bare copper per ASTM B3. Sizes #14 AWG - #10 AWG are solid. Sizes #8 AWG - #2 AWG are Class B compressed stranded per ASTM B8
Insulation: All phases and neutral(s) are insulated with Polyvinyl Chloride (PVC) with Nylon Sheath 2/C: Black, White 3/C: Black, Red, White 4/C: Black, Red, Blue, White
Ground: Solid soft drawn bare copper with kraft paper wrap
Binder: Kraft paper
Jacket: Polyvinyl Chloride (PVC) jacket utilizing SIMpull Technology

Standards & References

ASTM B3 Soft or Annealed Copper Wire
ASTM B8 Concentric-Lay-Stranded Copper Conductors
UL 719 Nonmetallic-Sheathed Cables
RoHS-2 (European Directive 2011/65/EU)
Federal Specification A-A-59544
NOM-063-SCFI Electrical Products – Conductors – Safety Requirements

Application & Features

Southwire Romex^® Brand SIMpull^® Type NM-B (nonmetallic-sheathed) cable may be used for both exposed and concealed work in dry locations as specified in the National Electrical Code®. NM-B cable is primarily used in residential wiring as branch circuits for outlets, switches, and other loads. NM-B cable may be run in air voids of masonry block or tile walls where such walls are not wet or damp locations. Voltage rating for NM-B cable is 600 volts.
